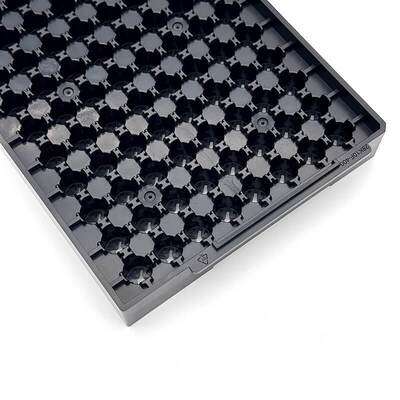

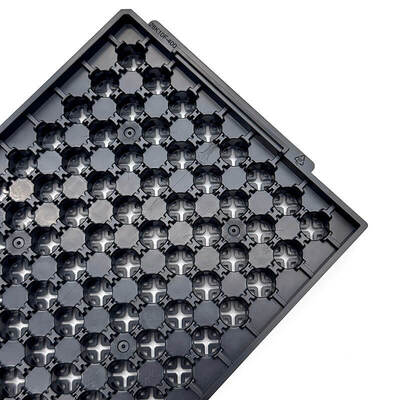

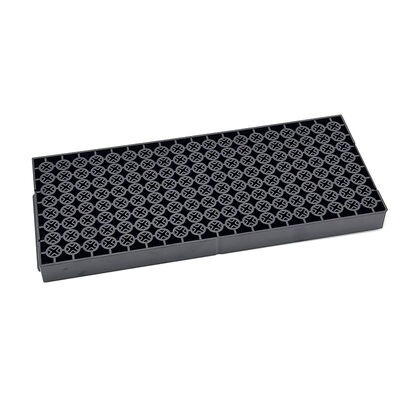

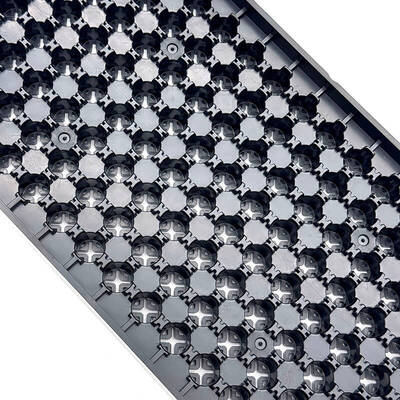

JEDEC-Compliant IC Tray with Precision Pockets

JEDEC-Compliant IC Tray with Precision Pockets

ブランド名: Hiner-pack
モデル番号: HN24219
MOQ: 500個
価格: $1.35~$2.38(Prices Are Determined According To Different Incoterms And Quantities)
支払条件: 100% 予期金
供給能力: 2000個/日
詳細情報
起源の場所:
中国
証明:
RoHS、ISO
マトリックス:
8×19=152個
湿度耐性:
最大90%
穴の大きさ:
60.2×63.2×4.2mm
耐荷重:
さまざまですが、通常はキャビティあたり最大 500 グラム
耐紫外線性:
はい
反り:
0.76mm未満
再利用性:
再利用可能
応用:
IC の取り扱い、保管、発送
パッケージの詳細:
70~100pcs/カートン ((顧客の需要に応じて)
供給の能力:
2000個/日
製品説明
Product Details
This JEDEC-compliant IC tray features precision-molded pockets for accurate IC placement during handling and storage operations. Designed for IC packaging applications, this reusable JEDEC ESD tray offers reliable protection and compatibility with standard semiconductor workflows.
Key Features/ Benefits
  • Precision pocket geometry
  • JEDEC standard dimensions
  • Precise cavity dimensions: φ10.2×21.7 mm
  • ESD protection
  • Durable and reusable
  • Cleanroom compatible

Specifications
Brand Hiner-pack
Model  HN24219
Material  PC
Tray Format JEDEC
Color Black
Resistance 1.0×10⁴ - 1.0×10¹¹ Ω
Outline Line Size 322.6×135.9×24.5 mm
Cavity Size φ10.2×21.7 mm
Matrix QTY 8×19=152PCS
Warpage MAX 0.76mm
Service Accept OEM, ODM
Custom Options Pocket size available
Applications
These trays are ideal for electronics manufacturing, assembly lines, cleanroom environments, and automated handling systems. Their versatility extends to acrylic tray displays and inventory management applications.
  • Electronics manufacturing and assembly lines
  • IC inspection
  • Semiconductor staging
  • Packaging operations

Packaging & Shipping/ Services
JEDEC Matrix Trays are packaged in durable, anti-static materials with secure stacking and cushioning inserts. Customized packaging solutions are available upon request. All shipments are tracked and handled by trusted carriers for reliable worldwide delivery.
About Us:
Hiner-pack® was founded in 2013. It is a high-tech enterprise that integrates Design, R&D, Manufacturing, Sales of IC packaging and testing, as well as semiconductive wafer fabrication process in automated handling, carrying, and transportation to provide customers with turnkey services.

Why Choose Us:

  • Factory-direct manufacturer of JEDEC & IC trays
  • JEDEC compliant, automation-compatible designs
  • OEM & ODM customization supported
  • Consistent quality and stable supply
  • Trusted by global semiconductor customers
