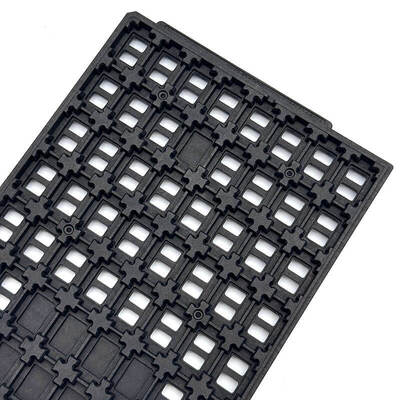

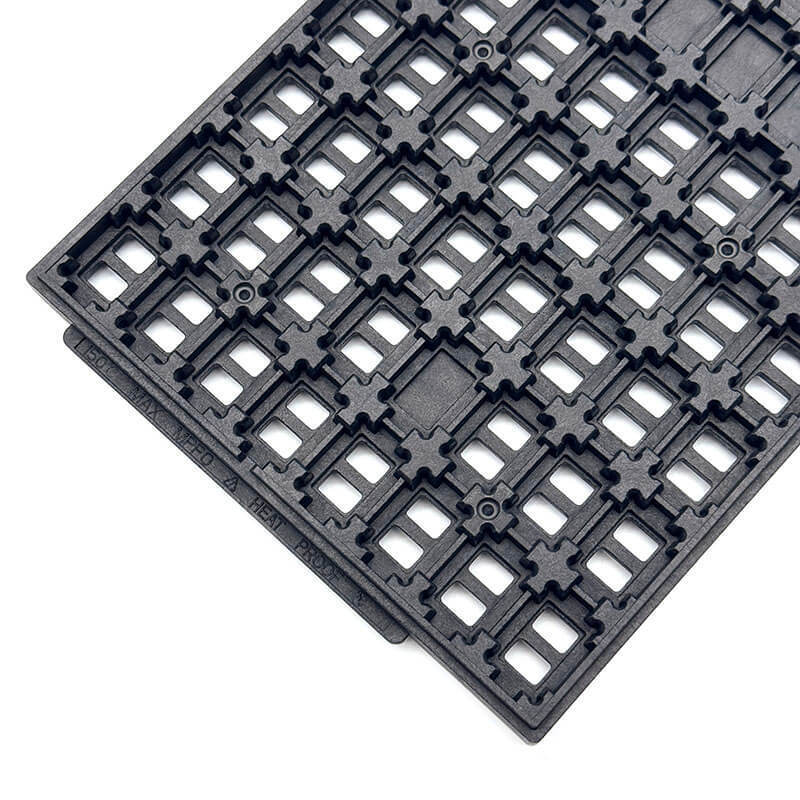

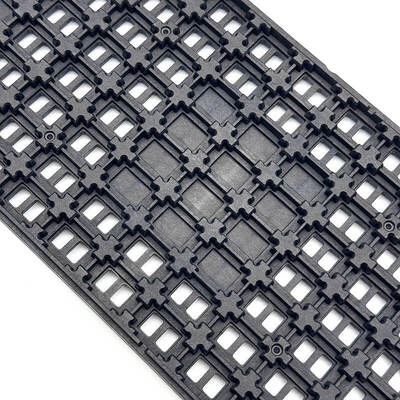

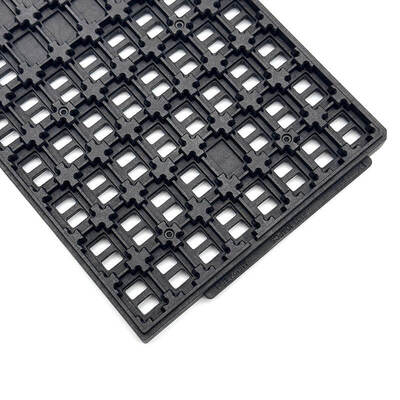

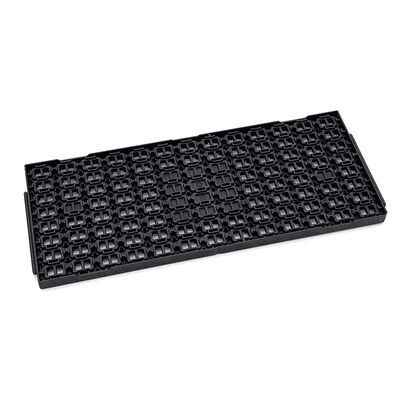

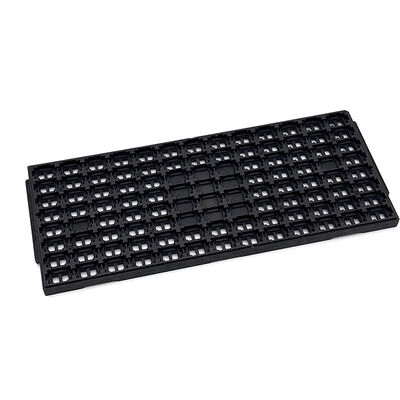

BGA CSP JEDEC IC Tray with V-Groove Protection, High Precision Cavity, and ESD-Safe MPPO Material

BGA CSP JEDEC IC Tray with V-Groove Protection, High Precision Cavity, and ESD-Safe MPPO Material

ブランド名: Hiner-pack
モデル番号: HN24234
MOQ: 500個
価格: $1.35~$2.38(Prices Are Determined According To Different Incoterms And Quantities)
支払条件: T/T
供給能力: 2000個/日
詳細情報
起源の場所:
中国
証明:
ROHS, ISO
皿の重量:
さまざまですが、通常はキャビティあたり最大 500 グラム
色:
通常、ESD保護のために黒または濃い灰色
品質保証:
配達保証,信頼性の高い品質
穴の大きさ:
17x10.5x5.17mm
インコタームズ:
exw、fob、cif、ddu、ddp
金型タイプ:
注射
再利用可能:
はい
トレーの形:
長方形
はっきりしたクラス:
概要および超音波清浄
ICタイプ:
BGA,QFP,QFN,LGA,PGA
梱包レベル:
輸送パッケージ
平面度:
0.76mm未満
容量:
8x13=104 個
パッケージの詳細:
カートン、パレット
供給の能力:
2000個/日
ハイライト:

BGA JEDEC tray with V groove

,

CSP IC tray for precision protection

,

JEDEC IC tray with V groove

製品説明
BGA CSP JEDEC Tray with V Groove for Precision IC Protection
Designed for high-level semiconductor cleanroom environments, this tray minimizes contamination and ensures IC integrity.
Key Features/ Benefits
  • V-groove protection design
  • Reduced chip damage
  • Suitable for fine pitch IC
  • High precision cavity
Specifications
Brand Hiner-pack
Model  HN24234
Material  MPPO
Package Type JEDEC
Color Black
Resistance 1.0×10⁴ - 1.0×10¹¹ Ω
Outline Line Size 322.6×135.9×12.19 mm
Cavity Size 17x10.5x5.17 mm
Matrix QTY 8x13=104 PCS
Warpage MAX 0.76mm
Service Accept OEM, ODM
Custom Pocket Options Available
Applications
JEDEC trays are widely used for IC protection during manufacturing and transport, especially for ESD-sensitive devices
  • BGA
  • CSP
  • Fine pitch IC
Packaging & Shipping/ Services
JEDEC Matrix Trays are packaged in durable, anti-static materials with secure stacking and cushioning inserts. Customized packaging solutions are available upon request. All shipments are tracked and handled by trusted carriers for reliable worldwide delivery.
About Us:
Hiner-pack® was founded in 2013. It is a high-tech enterprise that integrates Design, R&D, Manufacturing, Sales of IC packaging and testing, as well as semiconductive wafer fabrication process in automated handling, carrying, and transportation to provide customers with turnkey services.

Why Choose Us:

  • Rich experience in JEDEC / IC / waffle pack trays
  • In-house mold design capability
  • Fast prototype development
  • Strict QC process
  • Stable supply for global semiconductor customers
