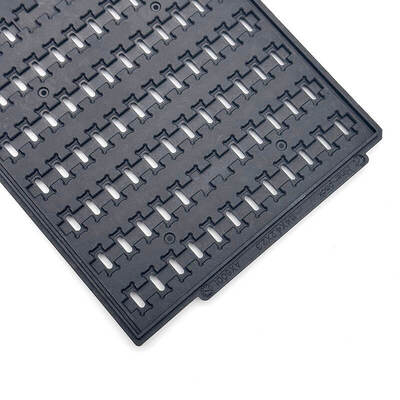

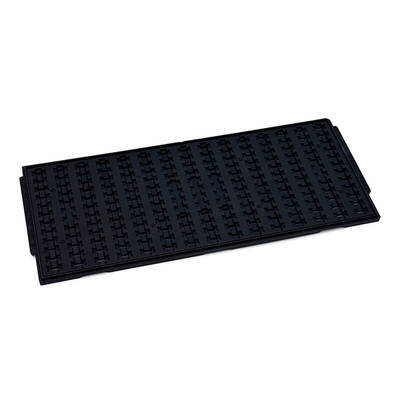

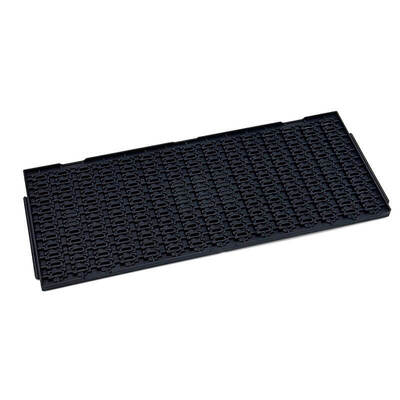

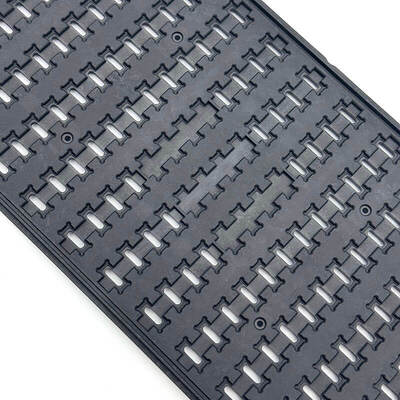

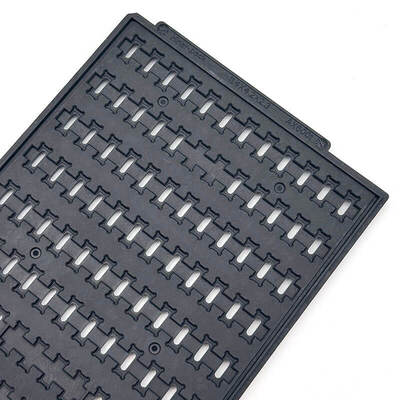

UV Resistant Reusable JEDEC Matrix Tray For Modules And PCBs JEDEC Format with Customizable Pocket Layout

This JEDEC matrix tray for modules is designed to accommodate larger or hybrid electronic assemblies while maintaining the same reliability and protection as standard IC trays. Constructed from durable, ESD-safe polymer, it ensures secure handling and transport of modules through automated assembly, testing, and storage processes. The tray's uniform pockets and integrated orientation markers help maintain consistent placement and alignment, while its robust stacking design enhances storage efficiency and safety during operations.

Engineered for reliable storage and handling of electronic components during manufacturing, testing, and shipping processes. These trays provide essential protection and organization for delicate components in precision-driven industries.

• Matrix Configuration: 2x4 layout accommodating 8 individual components
• Anti-Static Properties: PC Carbon Black material prevents electrostatic discharge (ESD) damage
• Durable Construction: Robust design ensures longevity and repeated use
• Standard Dimensions: Approximately 13.5" x 11.5" for optimal storage and transport
• High Weight Capacity: Supports up to 500 grams per cavity
• Clear Labeling: Printed identification for efficient inventory management
• Display Capability: Sleek design suitable for professional component showcasing

Model: HN 24172 | Manufactured in China | Certifications: RoHS & ISO Compliant

Ideal for semiconductor manufacturing environments requiring reliable IC handling, storage, and shipping. The trays support high-volume operations with a production capacity of 2,000 pieces per day.

• Integrated circuit handling and protection
• Building cable tray systems for organized storage
• Specialized packaging solutions including food paper tray applications

Flexible customization options allow this tray to meet specific module requirements:

• Pocket Layout Adjustments – Modify pocket size, spacing, or contour to accommodate custom module geometries.
• Color Options – ESD-safe materials available in multiple colors to differentiate part types or production stages.
• Molded Identification – Permanent codes, batch numbers, or logos can be integrated into the tray for traceability.
• Automation Interface Adaptation – Add indexing features, tabs, or cutouts to improve compatibility with specialized handling or feeding systems.
