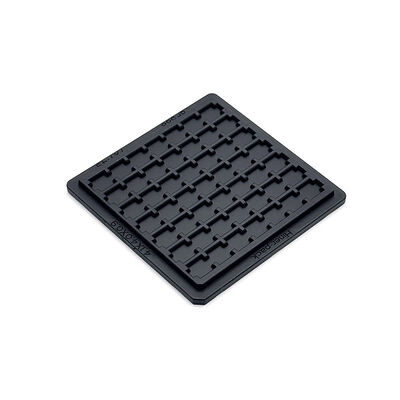

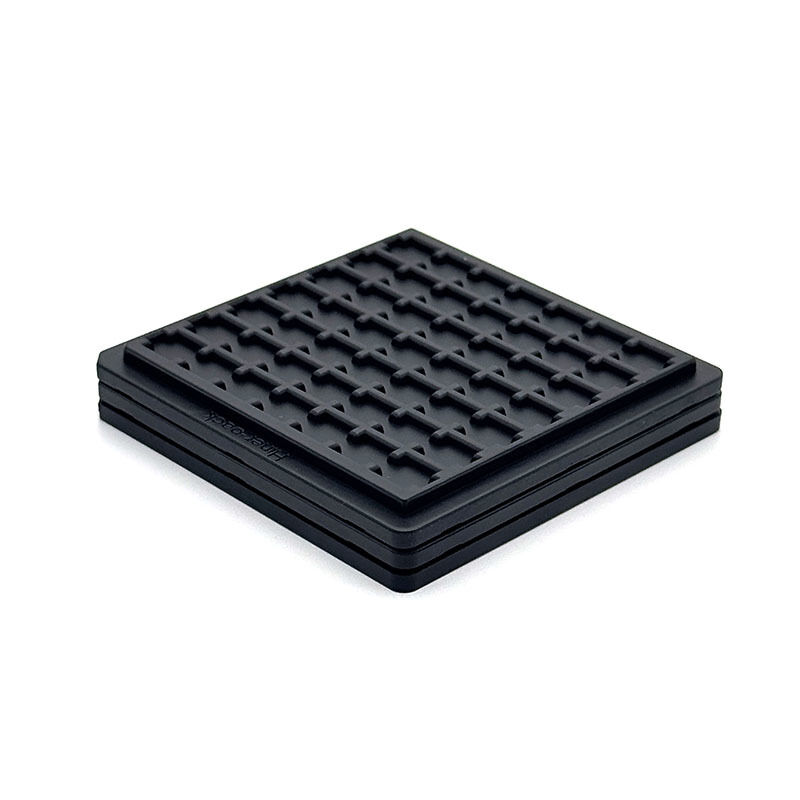

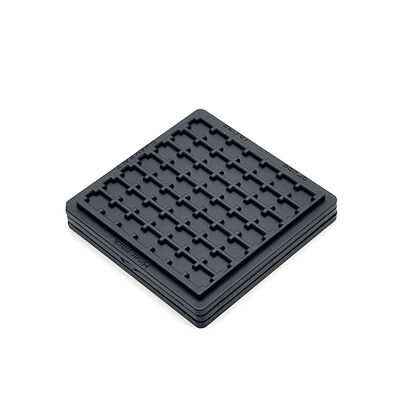

High Temp ESD Waffle Trays for Semiconductor ICs

High Temp ESD Waffle Trays for Semiconductor ICs

ブランド名: Hiner-pack
モデル番号: HN24199
MOQ: 500個
価格: $1.35~$2.68(Prices Are Determined According To Different Incoterms And Quantities)
支払条件: T/T
供給能力: 2000個/日
詳細情報
起源の場所:
中国
証明:
ROHS, ISO
皿の重量:
さまざまですが、通常はキャビティあたり最大 500 グラム
色:
品質保証:
配達保証,信頼性の高い品質
輪郭線のサイズ:
50.8×50.8×3.94mm
穴の大きさ:
4.1×4×0.9mm
インコタームズ:
exw、fob、cif、ddu、ddp
モールドタイプ:
注射
再利用可能:
はい
トレーの形:
長方形
はっきりしたクラス:
概要および超音波清浄
ICタイプ:
BGA,QFP,QFN,LGA,PGA
梱包レベル:
輸送パッケージ
反り:
反りMAX 0.2mm
容量:
7x7=49 個
パッケージの詳細:
カートン、パレット
供給の能力:
2000個/日
製品説明
High Temp ESD Waffle Trays for Semiconductor ICs
Adopts high temperature resistant material and anti-static structure to provide stable performance in harsh production conditions. Effectively fixes semiconductor IC chips and avoids displacement or damage during high temp processing.

Works well in high temperature processing procedures and automatic production lines. Ensures stable placement of chips and maintains component integrity in continuous operation.

Supports customization of cavity size and arrangement to fit different IC specifications. Focuses on safe fixing and reliable protection to meet various semiconductor production requirements.
Key Features/ Benefits
  • ESD protection
  • High temperature resistance
  • Suitable for Delicate Fine Pitch ICs
  • Protects delicate fine pitch IC components efficiently
  • Support fully customized cavity sizes and layout designs
  • The factory has ISO certification, and the products comply with the RoHS standard.
Specifications
Brand Hiner-pack
Model HN24199
Color Black
Resistance 1.0×10⁴ - 1.0×10¹¹ Ω
Outline Line Size 50.8×50.8×3.94 mm
Cavity Size 4.1x4x0.9 mm
Matrix QTY 7x7=49 PCS
Warpage MAX 0.2mm
Service Accept OEM, ODM
Custom Pocket Options Available
Applications
Suitable for high temperature semiconductor processing, chip baking, component testing and packaging procedures. Fits well in automatic production lines and high temperature working environments.

Applied in chip production, semiconductor packaging, electronic component processing and factory internal transportation. Widely used in semiconductor factories and electronic manufacturing plants.
Packaging & Shipping/ Services
Packed in standard cartons with inner protective layers to avoid scratches and deformation. Stacked safely for bulk transportation.

Supports sea, air and international express shipping. Ensures products arrive in good condition and ready for direct use in production.
About Us:
Hiner-pack® was founded in 2013. It is a high-tech enterprise that integrates Design, R&D, Manufacturing, Sales of IC packaging and testing, as well as semiconductive wafer fabrication process in automated handling, carrying, and transportation to provide customers with turnkey services.

Why Choose Us:

  • Rich experience in JEDEC / IC / waffle pack trays
  • In-house mold design capability
  • Fast prototype development
  • Strict QC process
  • Stable supply for global semiconductor customers
